ERGO Electronics - TV repair specialists.

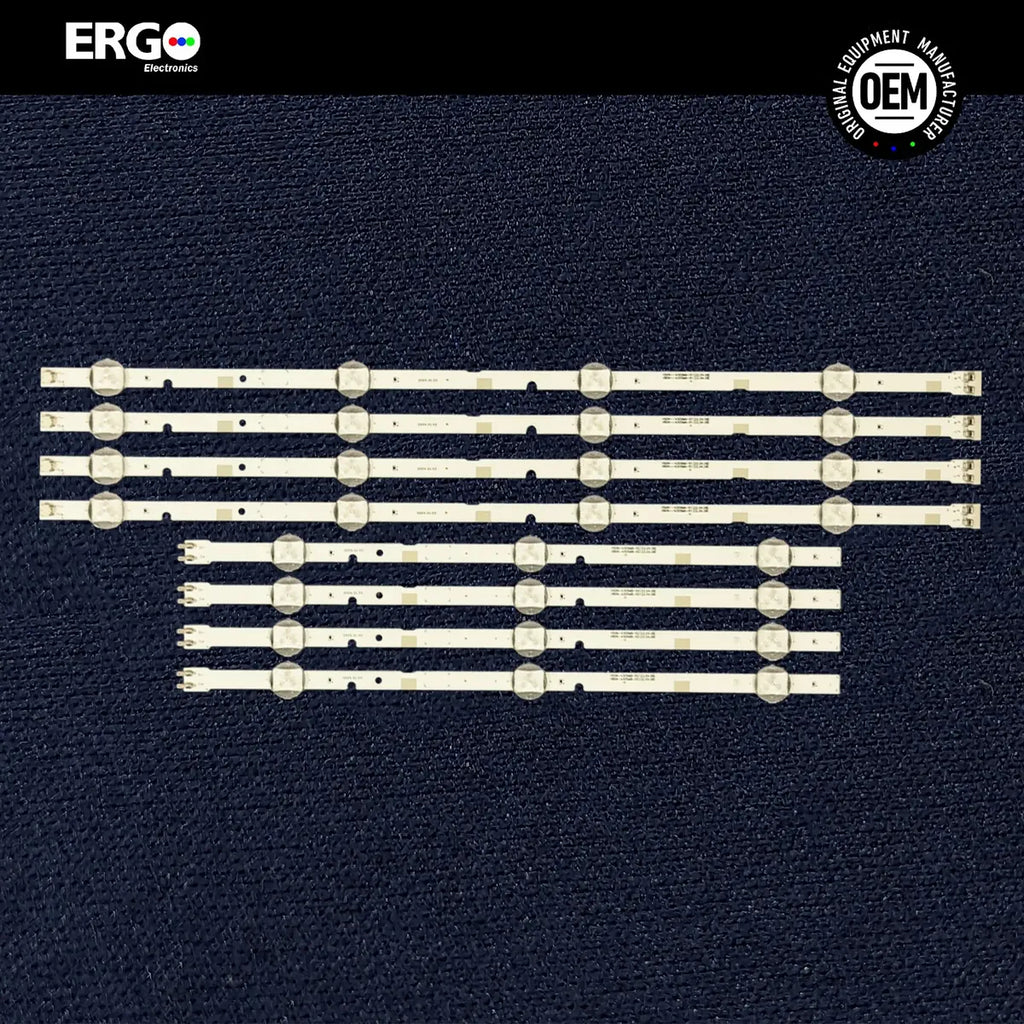

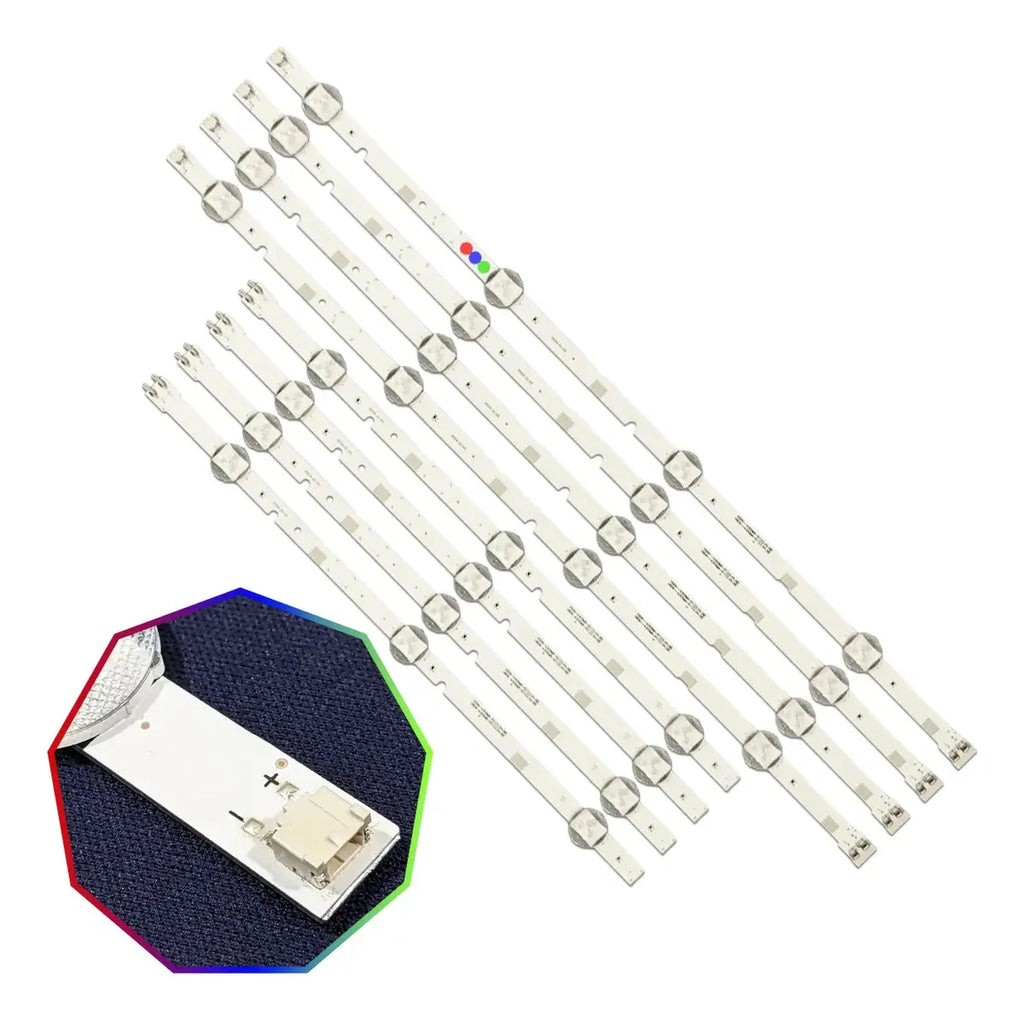

LED kit compatible with Samsung Aluminum, New (8 pieces, p12s12*).
-5-month warranty.
SAMSUNG BACKLIGHT SET APPLIES TO PART NUMBERS
*2015 SVS43 FCOM FHD DOE B RIGHT REV1.1 150605 *LM41-00120T_LM41-00121Y
*2015 SVS43 FCOM FHD DOE B LEFT REV1.1 150605 *LM41-00120U_LM41-00121Z
*L1_N5K_D3_FAM_R3(1)_R1.0_S1D_100_LM41-00624A *BN96-46570A
*L1_N5K_D3_FAM_L4(1)_R1.0_S1D_100_LM41-00622A *BN96-46571A
SPECIFICATIONS AND COMMENTS:
*P12 = From the side of the main connector leading to the power supply, count 1 LED and the notch or "tab" appears on the strip that locates it in the chassis; count 2 and there is another notch.
*S12 = secondary connector, count 1 LED and you will see the notch, count 2 and there is another notch.

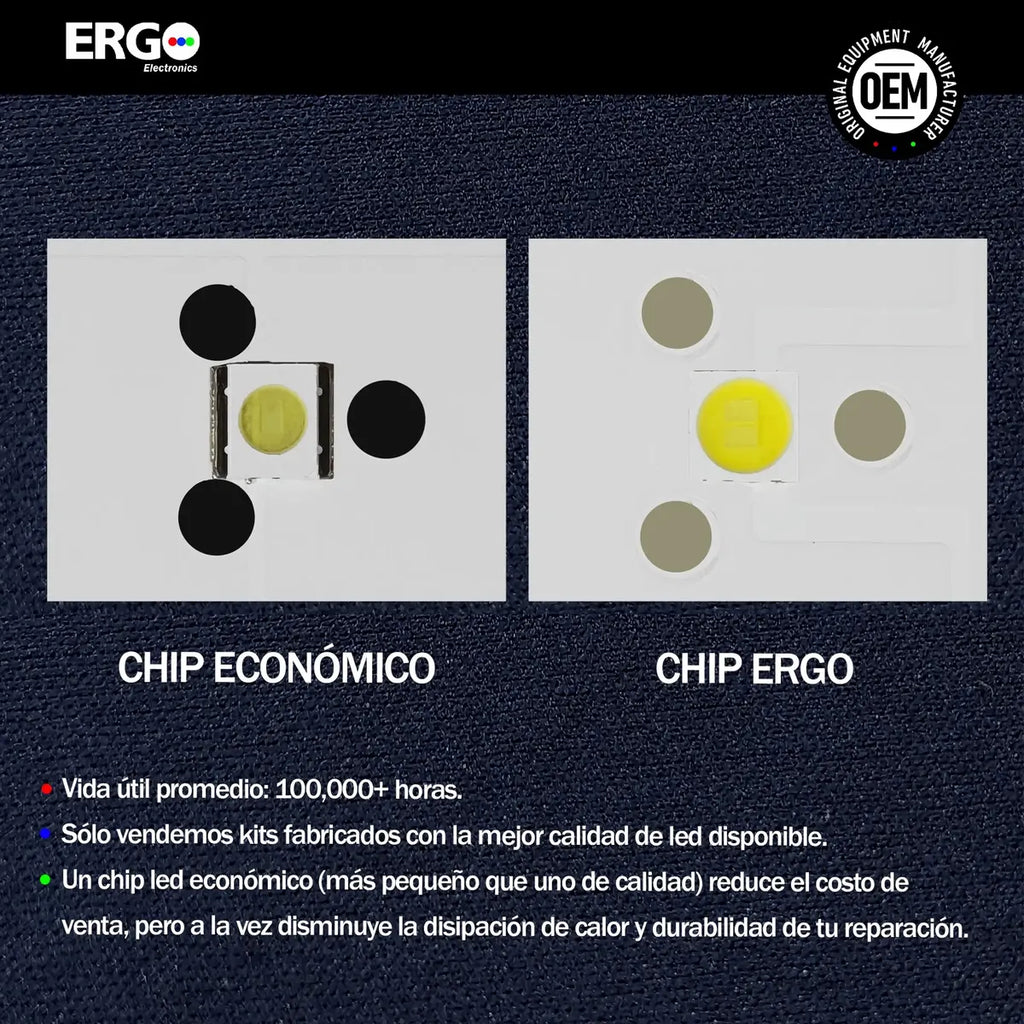

-Manufactured with the highest quality LEDs available on the market to avoid warranty claims. A cheap LED chip reduces the selling cost but also decreases heat dissipation and the durability of your repair (penultimate photograph).
-LED strips in aluminum version to improve heat dissipation and provide better performance.
-We recommend changing the complete kit to avoid return visits to your business or recurrence of the problem.
-All strips are checked with an LED tester before being shipped.
-If the purchased material does not work... we kindly ask you to communicate through the suggested messaging channels so we can advise you on the proper procedure; we will gladly assist you with a favorable resolution.
-In this model, there is a possibility that the Zener diode may come in black or white square form; they are interchangeable, and we ship according to availability.
Ask without obligation, we are here to serve you.
